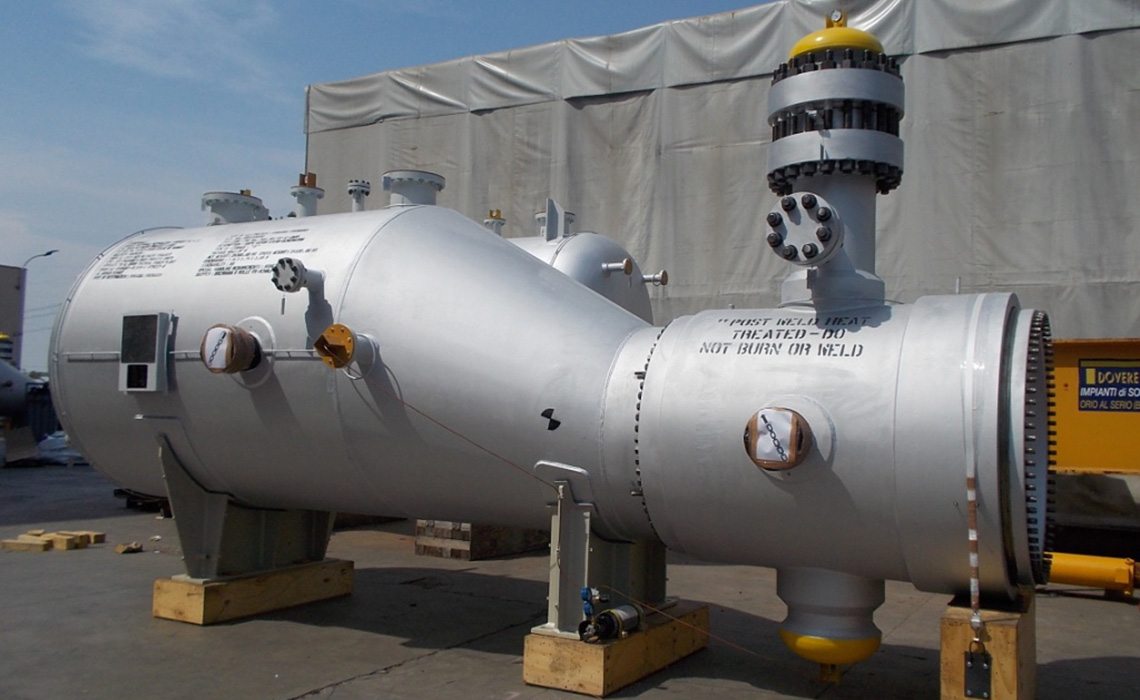

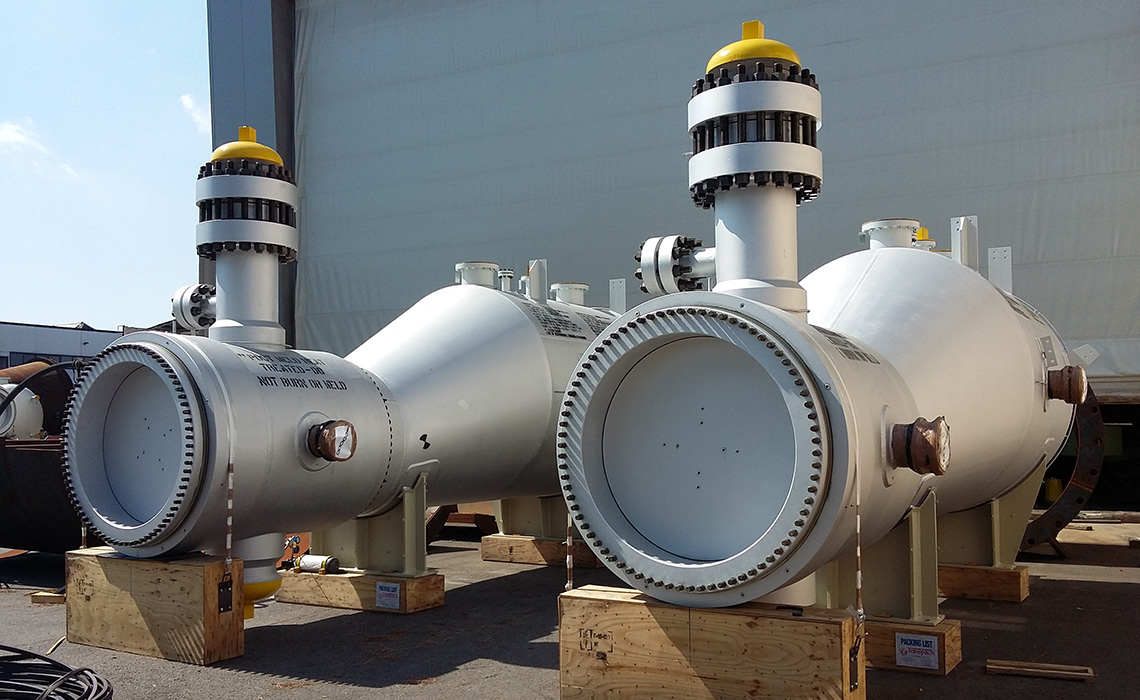

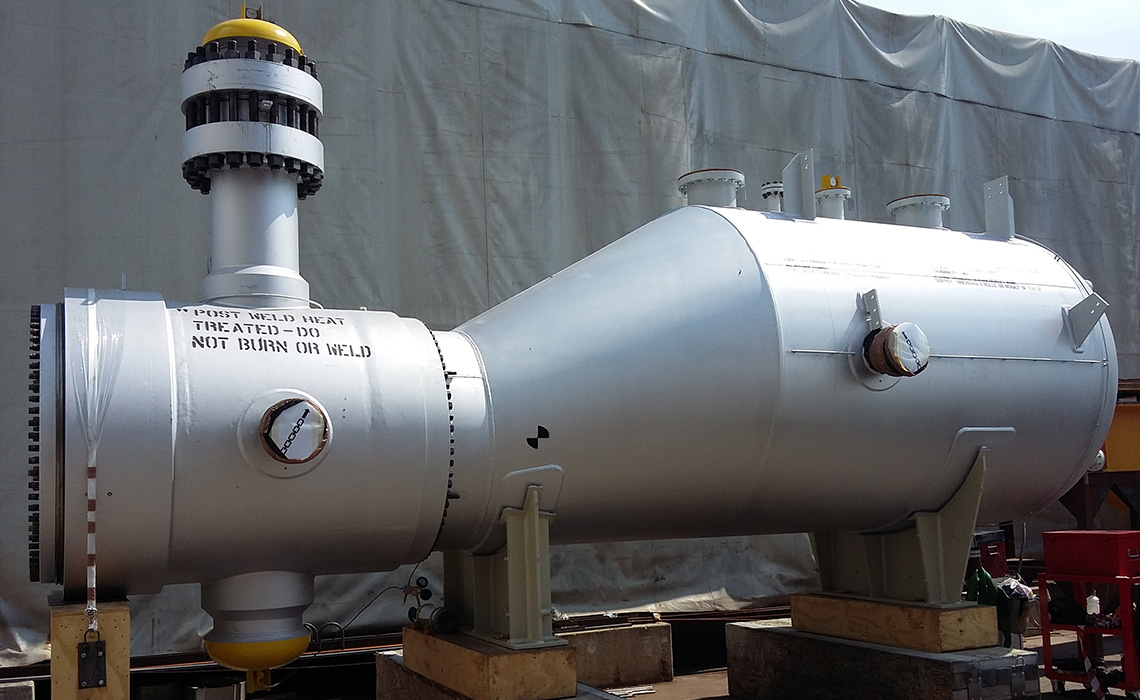

Breech lock HHPS vapor steam generator

Role

Resident Inspector and Expeditor in charge of BREECH LOCK HHPS VAPOR STEAM GENERATOR

General Info & Specs

  • Project: AL-ZOUR REFINERY PROJECT (ZOR) (PACKAGE 1)
  • Vendors: BEMBRANA&ROLLE (Albignasego, Italy).
  • Material Channel / Tubesheet: SA336 F22 Cl.3; with WOL Inconel 625.
  • Thickness: 117 mm
  • Weight: 23300 kg
  • I.D.: 2140 mm (Shell), 1310 mm (Channel)
  • Length: 7063 mm
